AIS 140 Certified
Vehicle Tracking Device
ARAI-approved ZS-140 device with multi-GNSS, emergency alerts, and 4G connectivity — built for India's public transport mandate.
Trusted & Certified
AIS 140 Certified
ARAI approved for public transport
Multi-GNSS
GPS, GLONASS, Galileo, NAVIC
4G / 2G
LTE Cat1 with 2G fallback
Emergency Button
NERS government alert system
IP65 Rated
Dust & water proof housing
Backup Power
800mAh internal battery
Compliance
What is AIS140?
The Ministry of Road Transport and Highways has amended the Central Motor Vehicle Rules, 1989, mandating the installation of vehicle location tracking devices and emergency buttons in all public service vehicles.
Intelligent Transportation Systems – VLT With An Emergency System
Function
Safety and Security
Sub Functions
- • Emergency Buttons
- • Vehicle Location Tracking (VLT)
Connected vehicle network across India
Regulation
Key Points of AIS140 Mandate
AIS 140 Mandate
All passenger transport vehicles must be equipped with a Vehicle Location Tracking (VLT) device and Emergency Button.
Flexible Installation
Approved devices can be installed or retrofitted by manufacturers, dealers, permit holders, or system integrators in any vehicle model.
Unique Device Identification
Each device must have a unique ID (VIN or IMEI) along with an embedded SIM for communication.
Vehicle Mapping
The device ID is mapped with vehicle registration number, engine number, chassis number, vehicle make & model, device details, and telecom provider.
Emergency Alert System
Passenger and driver emergency buttons send alerts to the authorized government backend server (NERS), and deactivation can only be done from the government server.
STrack Navigation
Real-time route monitoring and playback for AIS 140 compliant fleets.

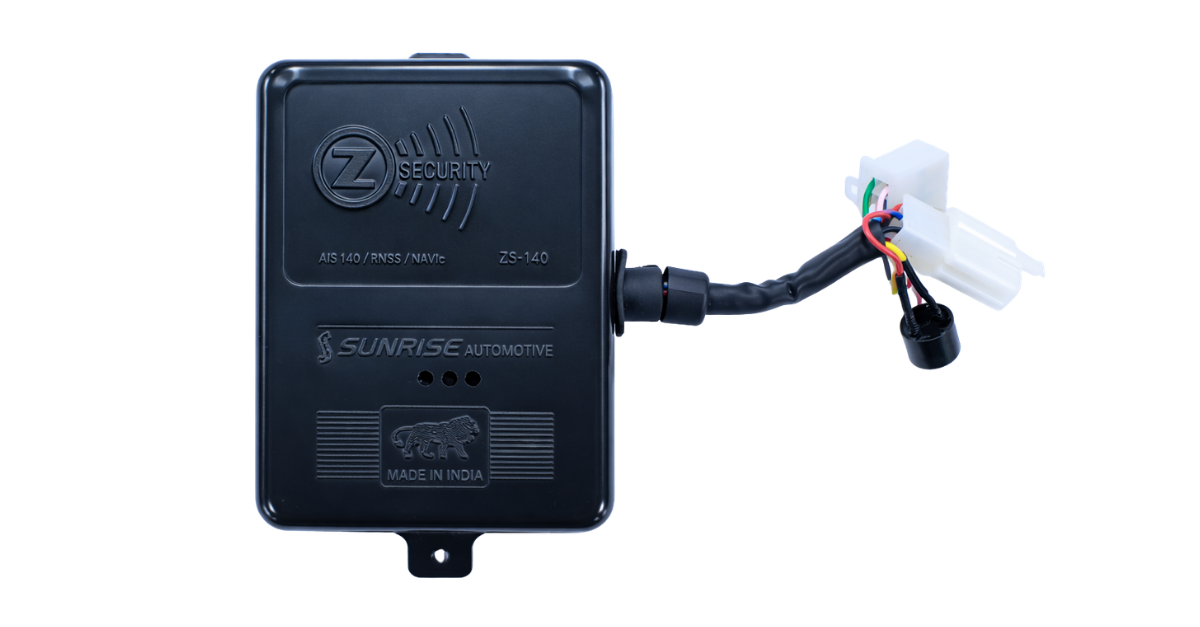

ZS-140 · Front view
ZS-140 · Rear connector layout
Hardware
Technical Specification
ZS-140 AIS 140 Certified Vehicle Tracking Device — explore by category or search any detail

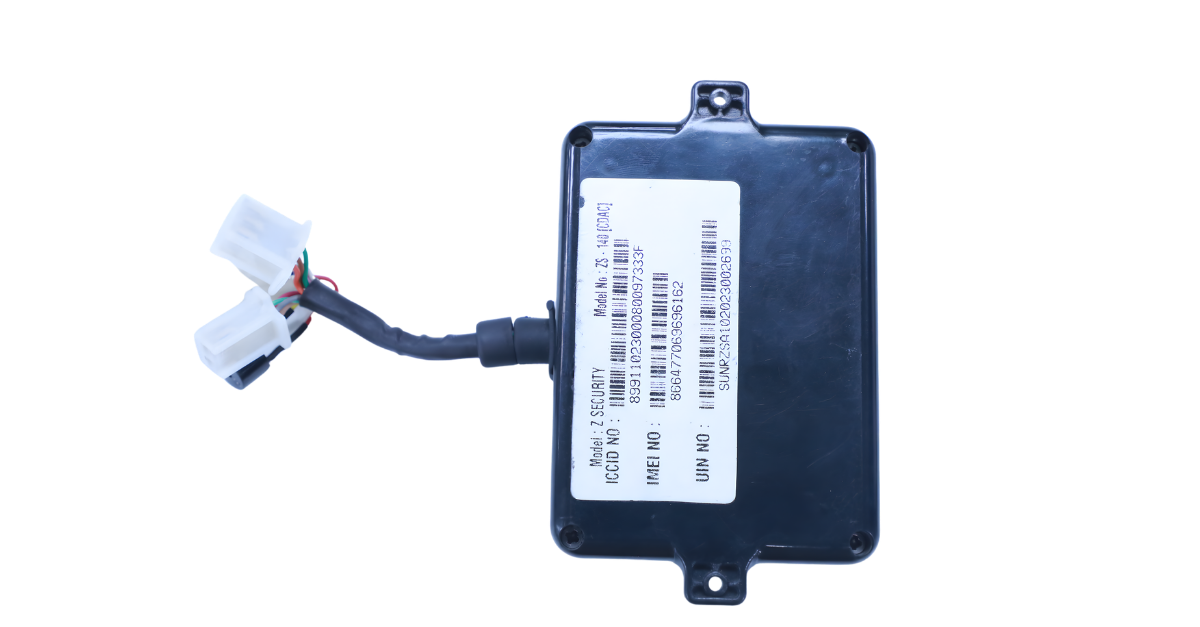

ZS-140 · Rear connector layout
Power & Network
4 specifications
- Power supply
- 9–36 V DC
- Network
- 4G with 2G fallback (LTE Cat1, LTE-FDD, LTE-TDD, GSM)
- Data rate
- •LTE-FDD: 10 Mbps DL / 5 Mbps UL
- •LTE-TDD: 8.96 Mbps DL / 3.1 Mbps UL
- •GPRS: max 85.6 kbps
- Current consumption
- •Active mode: < 50–90 mA
- •Sleep mode: < 20 mA
GNSS & Positioning
4 specifications
- GNSS sensitivity
- •Acquisition: -147 dBm
- •Tracking: -166 dBm
- •Reacquisition: -160 dBm
- GNSS acquisition (TTFF @ -130 dBm)
- •Cold start: 30 s
- •Warm start: 28 s
- •Hot start: 1 s
- GNSS receiving bands
- GPS L1 C/A, GLONASS L1, Galileo E1, BDS B1I & B1C, QZSS L1 C/A
- Horizontal position accuracy
- Autonomous: 1.5 m
Hardware & Durability
10 specifications
- Accelerometer
- 6-axis motion sensing
- Internal battery
- 3.7 V Li-Poly, 800 mAh
- Antenna
- High-gain inbuilt antennas for 4G/2G & GNSS
- LED indicators
- 3 × LEDs (Power, GPS, Network)
- Working modes
- Active mode & sleep mode
- Memory
- Storage for 40,000+ packets
- Housing
- Dust & water proof (IP65 rated)
- Operating temperature
- -20°C to 85°C
- Storage temperature
- -40°C to 85°C
- Protections
- Reverse polarity, overvoltage surge, short circuit, over current, load dump (12 V & 24 V)
Connectivity & I/O
6 specifications
- Communication
- TCP/IP, HTTP, FTP, SMS
- SIM type
- eSIM
- Connector
- 16-wire (with CAN) or 14-wire (without CAN)
- Connectivity ports
- •1 × Ignition
- •1 × Panic button input
- •2 × Digital input
- •2 × Digital output
- •1 × Analog input
- •RS232
- •1 × CAN 2.0
- Type A / B / C
- Type B BLE for full sensor; Type C CAN interface optional (J1979, J1939, custom CAN IDs)
- RS232 interface
- Debug information, RFID integration (optional), configurable from web
Software & Certification
3 specifications
- Configuration
- Web-based configurator, SMS
- Software features
- FOTA, odometer, turn detection, GPS drift control, driving behavior
- Certification
- AIS 140 certified from ARAI, RoHS
Fleet Management
Sunrise Track Platform
End-to-end fleet management powered by STrack — from live tracking and alerts to analytics and compliance reporting for ZS-140 equipped vehicles
Dashboard
Central command for your entire ZS-140 fleet — monitor compliance, device health, and daily operations from one screen.
- •Live fleet status and vehicle availability
- •Device health, connectivity, and battery alerts
- •AIS 140 compliance overview across all units
- •Emergency and geofence alert summary
Part of the Sunrise Track fleet management suite powered by STrack
Live Tracking
Real-time visibility into every vehicle on the map with full route history and emergency event monitoring.
- •Real-time GPS map with multi-vehicle view
- •Route playback and trip replay
- •Geofence entry/exit visibility
- •NERS emergency button event log
Part of the Sunrise Track fleet management suite powered by STrack
Reports
Actionable analytics to optimize fleet performance, fuel usage, and driver accountability.
- •Trip history and distance summaries
- •Fuel consumption analytics
- •Driver behavior and idle-time reports
- •Exportable summaries for operations teams
Part of the Sunrise Track fleet management suite powered by STrack
